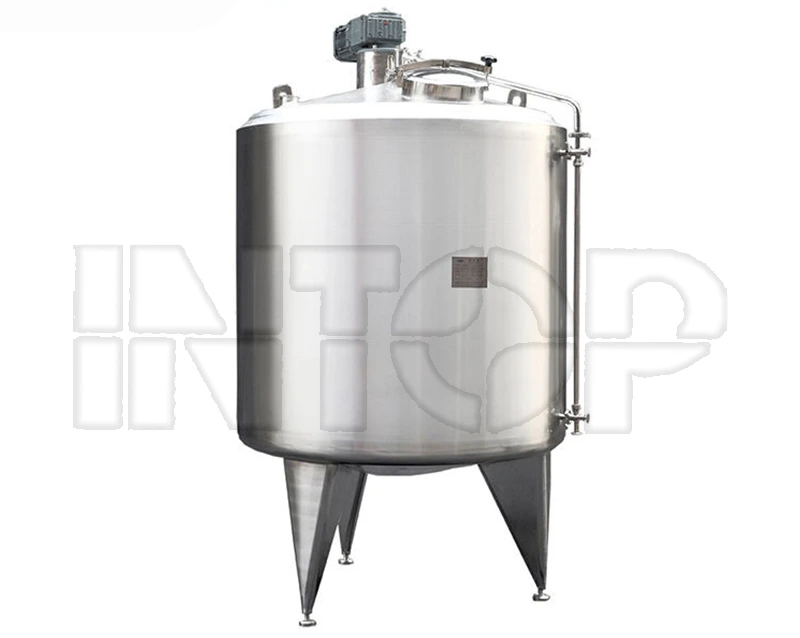

Mixing Tank

The mixing tank consists of a tank body, a mixing tank cover, a stirrer, a support, a transmission device, a shaft seal device, etc. Heating or cooling devices can also be configured according to process requirements. The mixing tank body and mixing tank cover are connected by flange sealing. The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), which drives the mixer inside the mixing tank through the transmission shaft. The shaft sealing device can be in the form of machine seal or packing. We can configure the mixer in various forms such as slurry, anchor, frame, and spiral according to the production process requirements of the user.

Product Technical Parameters

Equipment operation process

1. Before starting up, check whether there are foreign objects inside and outside the device, and whether it is normal

2. Check if the power supply is normal before starting up

3. Set the frequency converter to<10HZ before starting up, and set the frequency adjustment knob to 0

4. Please turn on the exhaust fan before homework

5. Produce materials according to the process and safety requirements

6. Pay attention to the motor speed when starting up (the motor should operate under load and should not idle for a long time)

7. After shutdown, please set the adjustment button to 0

8. Clean the equipment promptly after the discharge is completed
