Industrial reverse osmosis water treatment system for producing high-purity water

Intop is a China high-quality supplier and manufacturer of water treatment systems. Our water treatment system adopts stainless steel sand filter and activate carbon filter, and the host adopts imported RO reverse osmosis membrane and components, ensuring that the effluent standard meets the national pure water standard. The control methods of water treatment systems mainly include fully automatic PLC touch screen control and semi-automatic button operation control. The equipment is mainly used for the production of soda drinks, purified water, etc., which converts raw water into usable pure water and ultrapure water through a water treatment system.

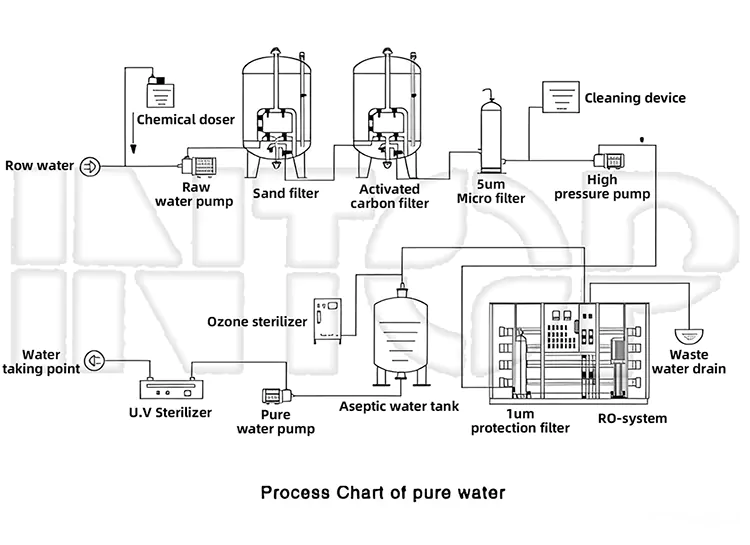

Purified water production process diagram

The entire water treatment system can convert raw water into the pure water or high-purity water you need. The entire system includes a raw water pump, mechanical filter, activated carbon filter, precision filter, reverse osmosis device, RO cleaning device, engineering pipe fittings, etc

Technical parameters of water treatment system

Model	RO-1000	RO-3000	RO-5000	RO-10000
Process capacity(L/h)	1000	3000	5000	10000
Raw water pump model	CHL2-40	CHL8-40	CHL8-50	CHL8-50
Sand filter	400*1500	600*1500	800*1500	800*1500
Active carbon filter	400*1500	600*1500	800*1500	800*1500
Filter core specification	65*500	65*750	65*750	65*750
Filter core number	5	5	7	7

Revers Osmosis system
RO Cleanning device（including cleanning pump，cleaning box，etc.）
Overall dimensions Reverse osmosis part	Length	2600	2600	2600	2600
	Width	700	700	900	900
	Height	1900	2000	2000	2000

In which places are water treatment systems generally used?

Our water treatment system has a wide range of applications, including providing water for residential households, schools, hospitals, hotels and restaurants, juice beverage production, scientific research, and other scenarios

What are the advantages of choosing Intop's water treatment system?

Intop has many years of experience in the production and export of water treatment systems. The company's equipment systems are made of high-quality sanitary grade stainless steel materials. The RO reverse osmosis membrane is selected from high-end imported brands, and the engineering components are also selected from imported brands. Our reverse osmosis device can remove more than 97% of soluble salts and more than 99% of colloids, microorganisms, and organic matter in water. The outstanding features of our products are low energy consumption, no pollution, high effluent quality, and easy operation and maintenance.

View as

Fully Automatic Water Treatment System

Intop is a manufacturer of fully automatic water treatment system, equipped with advanced RO reverse osmosis technology and RO membrane to effectively remove odors and residual oxygen from raw water, improving the taste of water quality.

View More >> Send Inquiry >>

Semi Automatic Water Treatment System

Intop is a Chinese factory specializing in semi automatic water treatment system, which are a practical and economical solution for water treatment. It successfully applies automation technology to time-consuming flushing and regeneration processes while retaining the flexibility of manual control.

View More >> Send Inquiry >>

Reverse Osmosis Equipment

The Intop brand's reverse osmosis equipment is the ideal preferred equipment in modern pure water, high-purity water, and ultrapure water engineering. The key component of this equipment is imported RO membrane, which perform well in removing salt. It has the advantages of low energy consumption, high effluent quality, and easy operation.

View More >> Send Inquiry >>
