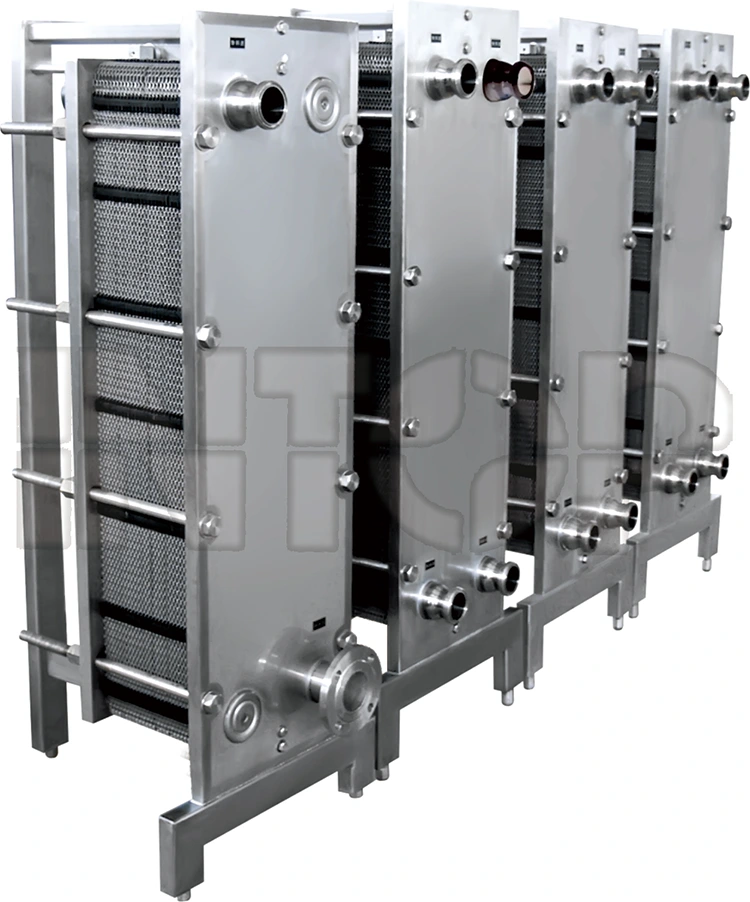

Plate Heat Exchanger

Plate heat exchanger is a new type of high-efficiency heat exchanger composed of metal plates with certain corrugated shapes stacked together. The structure includes gaskets, compression plates (movable end plates, fixed end plates), and frames (upper and lower guide rods, front pillars). The plates are sealed and guided by sealing gaskets, separating the cold/hot fluid channels. The cold/hot heat exchange medium flows through each channel and exchanges heat with the separated plates to achieve the desired temperature for the user. Each board has openings at the four corners, which are assembled into a bundle to form distribution and collection pipes for the fluid. After heat exchange between the cold/hot medium, it flows back from its respective collection pipe and is recycled.

Product structure principle

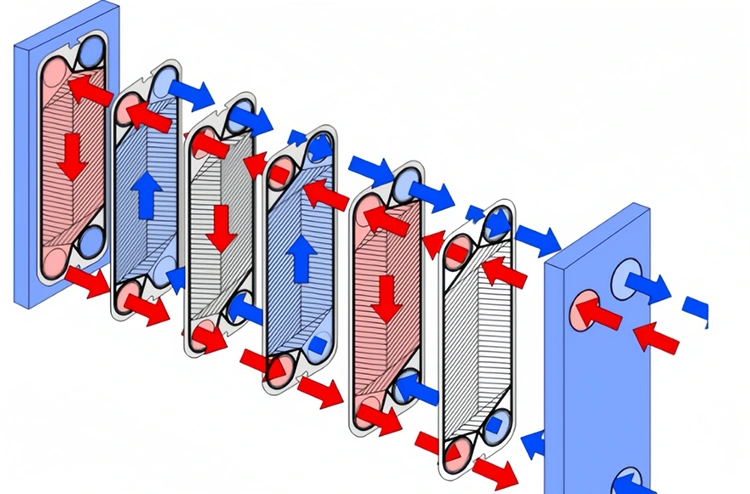

Single process structure: Only 2 plates do not transfer heat - head and tail plates.

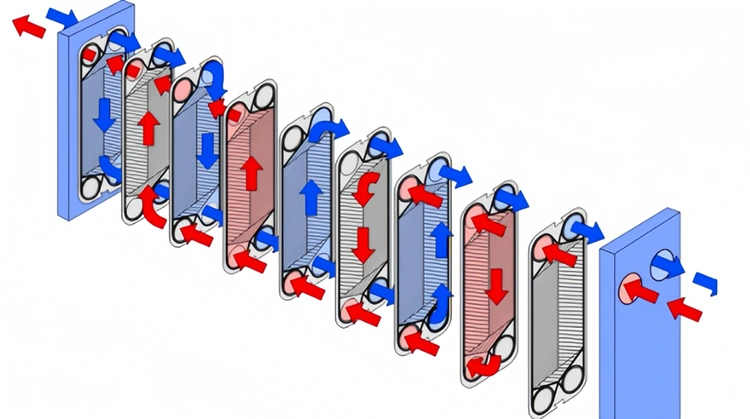

Dual process structure: Each process has 3 plates that do not transfer heat.

Product Features

(1) Small size and small footprint;

(2) High heat transfer efficiency;

(3) Flexible assembly;

(4) Low metal consumption;

(5) Low heat loss;

(6) Easy disassembly, cleaning, and maintenance。
