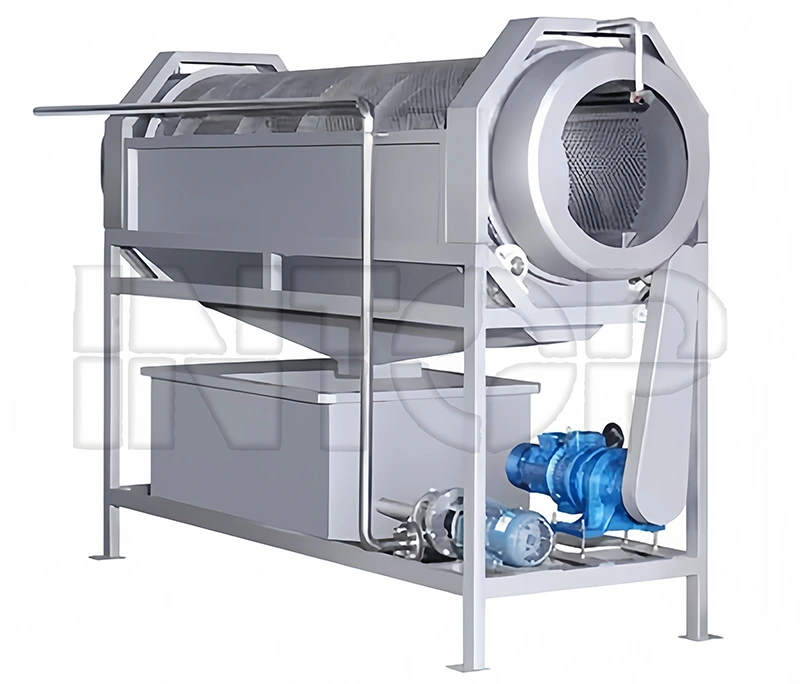

Fruit and Vegetable Drum Washing Machine

Fruit and vegetable drum washing machine is a type of equipment suitable for cleaning fruits and vegetables grown in soil. It has the characteristics of novel and compact structure, energy saving and high efficiency, high production efficiency, thorough cleaning, minimal damage to fruits and vegetables, and wide range of use. This machine is widely used for cleaning fruits and vegetables such as carrots, potatoes, sweet potatoes, and red dates.

product structure

The fruit and vegetable drum washing machine consists of a frame, transmission reducer, circulating water pump, hollow screw conveyor, drum, spray pipe, nozzle, water tank, filter tank, drain valve and other components.

Product working principle

When the fruit and vegetable drum washing machine is in operation, the gearbox rotates the transmission shaft through a chain, and then drives the transmission chain on the outer surface of the drum through the power sprocket on the transmission shaft, thereby rotating the drum. After the fruit and vegetable raw materials enter the drum, they are rolled and cleaned under the action of the drum and high-pressure spray water. Due to the hollow spiral on the inner wall of the drum, it is convenient to evenly output the materials forward. And the sewage flows through the mesh holes on the surface of the drum, enters the collection bucket and flows into the water filtration tank, and then enters the water tank through the mesh holes on the filtration tank. The dirt will remain in the filtration tank; The water filtered through the filtering tank is transported to the spray pipe by the circulating water pump, and the material is cleaned again to achieve the purpose of cleaning.
