Labeling Machine

Working principle

After the sensor sends a signal that the labeled material is ready to be labeled, the driving wheel on the labeling machine rotates. Due to the tension state of the roll label on the device, when the bottom paper is tightly attached to the peeling board and changes direction, the label is forced to detach at the front end due to its own material's rigidity, preparing for labeling. At this point, the labeled object is located exactly below the label, and under the action of the labeling wheel, synchronous labeling is achieved. After labeling, the sensor below the roll label sends a signal to stop running, and the driving wheel comes to a standstill, ending one labeling cycle.

Technical Specifications

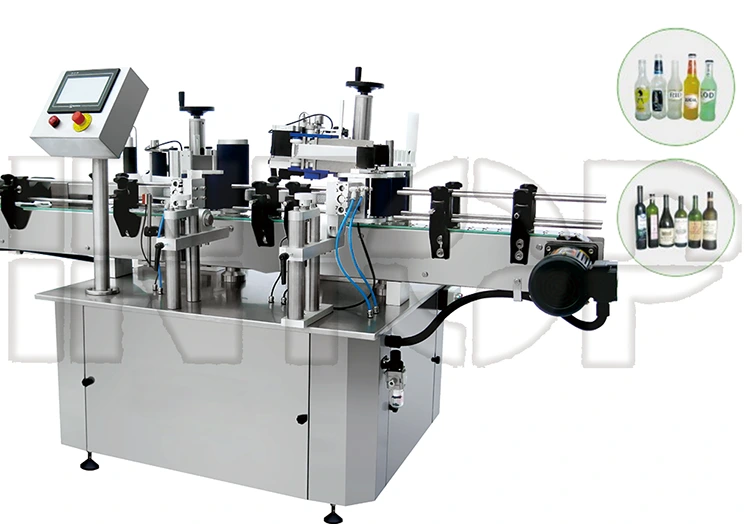

1. The fully automatic vertical round bottle positioning and labeling machine is suitable for labeling circular bottle objects on the circumference, and can be labeled with single or double labels. The distance between the front and back double labels can be flexibly adjusted, such as labeling beverage round bottles, food round cans, etc. It is equipped with a circular positioning detection device, which can achieve labeling at designated positions on the circumference. Widely used in industries such as beverages, dairy products, pharmaceuticals, food, and daily chemical products.

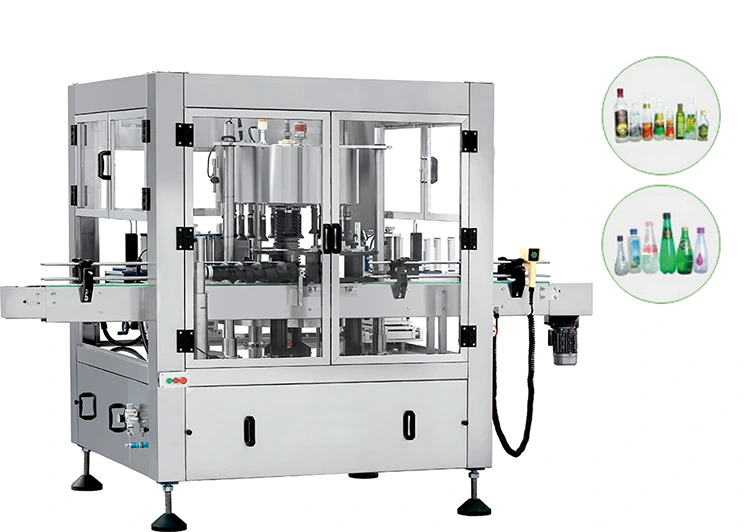

2. High speed rotary adhesive labeling machine

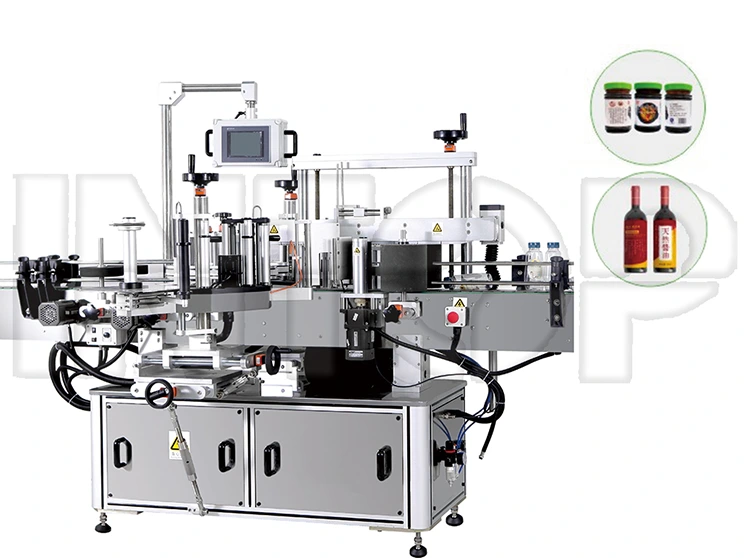

3. Linear round bottle positioning adhesive labeling machine
