PET Blower Machine

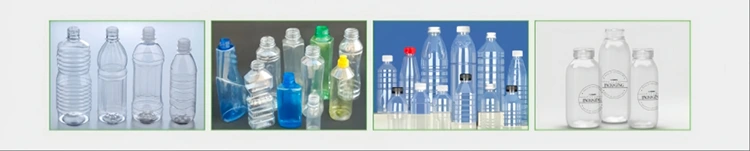

The PET blower machine plays an important role in the filling and packaging process. Intop is the source factory of PET blow molding machines, which are mainly used for manufacturing packaging products such as fruit juice drinks, carbonated drinks, and purified water, thereby improving production efficiency. Intop brand bottle blowing machines are equipped with high-quality electronic components, ensuring stable operation, easy operation, and guaranteed quality.
Our PET blower machine adopts internationally renowned servo motors, reducers, electrical components, and control systems to create stable, reliable, efficient, durable, energy-saving, and convenient mechanical products. Suitable for blowing beverage bottles with various appearances and calibers made of PET/PETG and other materials, especially adept at blowing difficult and demanding shaped bottles.
Technical Specifications
|
Output（BPH） |
2000-2600 |
|
Mold opening itinerary（mm） |
130 |
|
Stretching stroke（mm） |
350 |
|
Maximum bottle capacity（L） |
2 |
|
Maximum caliber（mm） |
40 |
|
Maximum bottle diameter（mm） |
100 |
|
Maximum bottle height（mm） |
350 |
|
Total power（kw） |
103 |
|
Maximum heating power（kw） |
94 |
|
Operating gas pressure（Kg/cm2） |
8 |
|
Operating gas consumption（L/min） |
1500 |
|
Blowing gas pressure（kg/cm2） |
40 |
|
Gas consumption for blowing bottles（L/min） |
6800 |
|
Cooling water pressure（kg/cm2）） |
4-5 |
|
Cooling water temperature（°C） |
10-20 |
|
Cooling water flow rate（L/min） |
100 |
|
Machine dimensions（m） |
3.9*2.1*2.2 |
|
Machine weight (ton) |
4.6 |
Product Features
1. With high production capacity, fully automatic PET blower machines are very suitable for large-scale production because they can produce a large number of bottles per minute;
2. It has strong flexibility and can be set to create bottles of various sizes, shapes, and patterns;
3. It has an efficient heating and cooling system and precise temperature control during the blow molding process;
4. It has a fully automated operation process and is easy to operate.
Hot Tags: PET Blower Machine, PET Blower Equipment, PET Blower Manufacturer
