Extraction Tank

Extraction tank is a commonly used leaching and extraction equipment in the pharmaceutical and chemical industry, especially suitable for the leaching and extraction of components contained in plant products. The structure has a tank body, a screw propeller with an axial position device inside the tank body, and a rotating shaft connected to the outside of the tank body. Its characteristic is to have a

A continuous countercurrent leaching extraction tank is arranged in an inclined position, with the discharge port connected to the feed port to form a connector. Each single tank has a feed port at the lower end of the upper part, a residual liquid discharge port at the lower part, a liquid inlet or exhaust port at the upper part of the tank, and a discharge port at the lower part.

Product Category

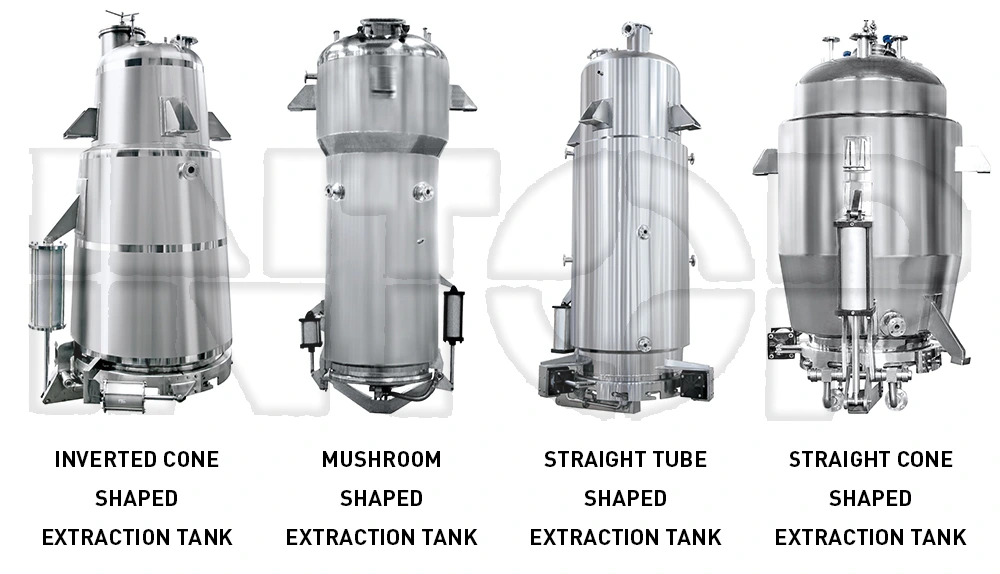

1. According to appearance, it can be divided into mushroom shaped extraction tank, inverted cone shaped extraction tank, straight tube shaped extraction tank, and straight cone shaped extraction tank

2. Divided by purpose into anthocyanin extraction tank, traditional Chinese medicine extraction tank, essential oil extraction tank, etc

Product Technical Parameters

Product structure

The extraction tank consists of a lifting tank body, a condensing cooling system, a stirring system, a feeding system, a discharging system, a filtering system, a cleaning system, an electrical control, centrifugal equipment, and other components

1. The extraction tank body is equipped with a jacket for easy heat exchange, with a manhole on the top and two cylinders on the bottom, and a slag discharge door switch;

2.The function of the condenser is to condense the liquid vapor and recover alcohol;

3. The function of the cooler is to cool the condensate and solvent;

4. The function of the oil-water separator is to separate the cooled recovered liquid into aromatic oil during oil extraction;

5. The function of the gas-liquid separator is to separate the gas-liquid and prevent the liquid from being carried out of the tank during venting;

6. The reducer is used to stir the materials inside the tank, so that the effective components extracted from the solid can be heated and boiled out, which is beneficial for slag removal.
