Vacuum Concentrator

Intop is a manufacturer of vacuum concentrator. This equipment is suitable for concentrating industrial liquid materials such as pharmaceuticals, food, health products, oral liquids, fruit juices, chemicals, and light industries. It can also be used for simple extraction of recovered alcohol and other solvents.

Send Inquiry

Product Description

Our vacuum concentrator is all made of high-quality stainless steel materials, with compact structure and beautiful appearance. The vacuum concentrator mainly consists of six components: condenser, cooler, gas-liquid separator, concentration tank, connecting pipe, and liquid receiving tank. The concentration tank is a jacket structure, the condenser is a tubular structure, and the cooler is a serpentine structure. The concentration ratio is 1.35-1.45

Product Technical Parameters

Model	ZN-300	ZN-500	ZN-700	ZN-1000	ZN-2000
Vapor pressure(Mpa)	0.09	0.09	0.09	0.09	0.09
Degree of vacuum(Mpa)	0.08	0.08	0.08	0.08	0.08
Heating area(m2)	1.1	1.45	1.8	2.3	5.0
Condensation area(m2)	4	6	8	12	18
Area of cooling surface(m2)	1	1	1	2	2
Receiving tank volume(L)	100	200	200	300	400
Overall dimensions(mm)	170010003000	210012003200	240013003720	240013003720	400013004200

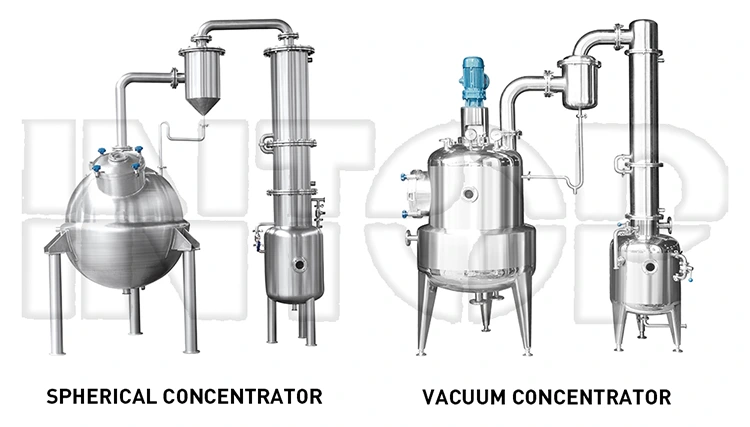

Vacuum Concentrator

Product working principle

The vacuum concentrator is equipped with a jacket and a thermal insulation layer. The jacket is heated by steam or heat transfer oil, so as to indirectly heat the materials in the concentration tank to boiling. The foam with effective ingredients in the evaporated secondary steam is separated from the vapor liquid separator and returned to the tank. The rest of the steam is recovered to the receiving tank by the condenser.
