Plate Pasteurizer

Plate pasteurizer, also known as instantaneous pasteurizer, is a primary sterilization equipment designed for dairy beverages or similar liquid materials. We can design different process combinations based on the heating, sterilization, insulation, cooling, and other manufacturing processes of different materials according to the user's requirements, to meet their needs.

Product structure configuration:

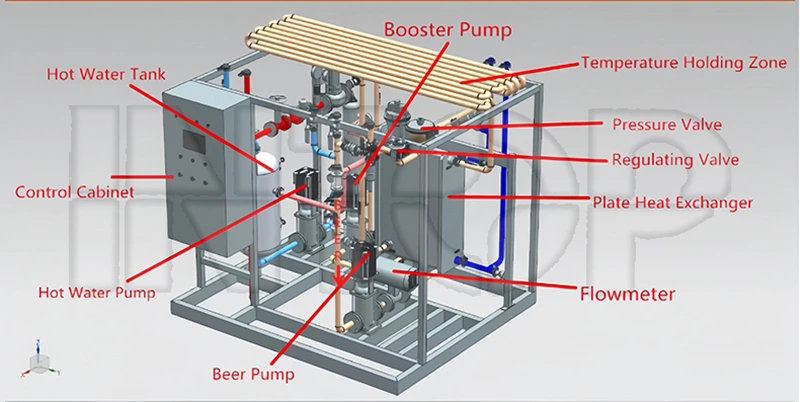

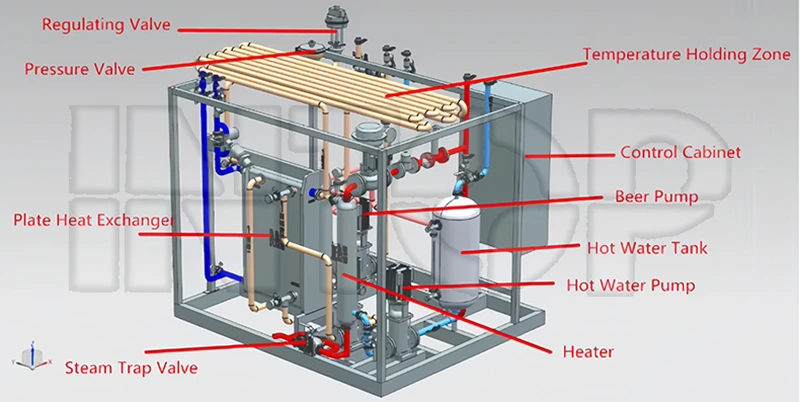

The plate pasteurizer is mainly composed of material balance and conveying system, plate system, material pipeline system, hot water pipeline system, steam pipeline system, hot water heating system, automatic material reflux system, temperature automatic control and electrical control system, etc. The control system can choose semi-automatic or fully automatic PLC control.

Product features and advantages:

1. The materials and heating medium are heated through non-contact heat exchange in their respective sealed systems to ensure the hygiene and safety of the materials;

2. Short sterilization time can ensure that the nutritional components of the material are not destroyed;

3. The entire machine is made of food grade stainless steel materials to ensure compliance with national safety and hygiene standards for beverages and food;

4. Good heat transfer effect, high heat recovery rate, and low energy consumption;

5. The main control components, parts, and supporting parts are all selected, with a long service life;

6. Adopting PLC control, it can effectively control the heating degree, hot water temperature, and base steam flow rate of the material section, and is equipped with a material dynamic reflux system to ensure that the material achieves 100% sterilization effect;

7. The structure is simple, easy to clean, convenient to lift, and the repair cost is low.

Product parameter details：
